Magnetic Products, Inc., updates Filter Bag Magnet (FBM) to enable cost and time savings

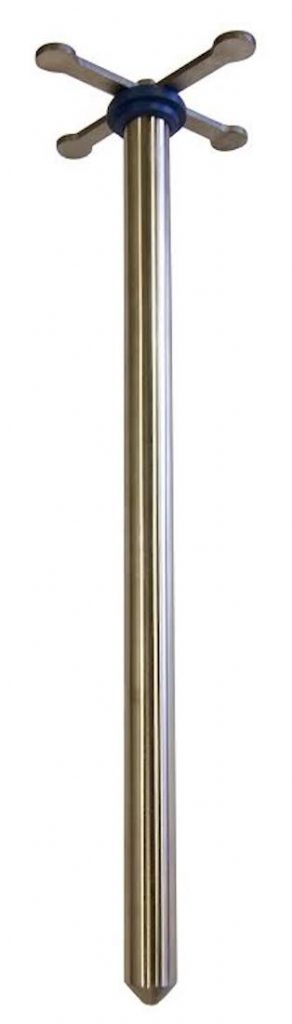

MPI Filter Bag Magnet

MPI Filter Bag Magnets (FBM Series) collect ferrous metal that would otherwise
be collected in the bag filter. Installing the MPI rare earth filter bag magnet inside
the bag filter significantly reduces the frequency required to clean and replace bag
filters, according to MPI. MPI’s rare earth magnetic circuit generates over 10,000
gauss on product contact areas for maximum tramp metal retention, which significantly
outperforms ceramic and alnico designs. The powerful magnet reduces tramp
metal plugging and cutting filter bags.

FBM’s are designed for easy installation, cleaning and removal. Standard 316
stainless steel sturdy welded construction is durable against wear and damage.
The liquid tight, fully welded design ensures no water ingress, which can damage
the magnet. The full length magnetic tube maximizes tramp metal retention. A four
clover handle grip centers the magnet in the housing vessel device. The nonmetallic
stripper eases routine cleaning of the magnetic tube. Implementing a magnetic
bag filtration system allows the liquid to flow around the magnetic field and capture
any ferrous particles in a magnetic trap. The magnetic tube filter is then removed,
cleaned and ready for reinsertion into the bag filter to be used again.

mpimagnet.com
